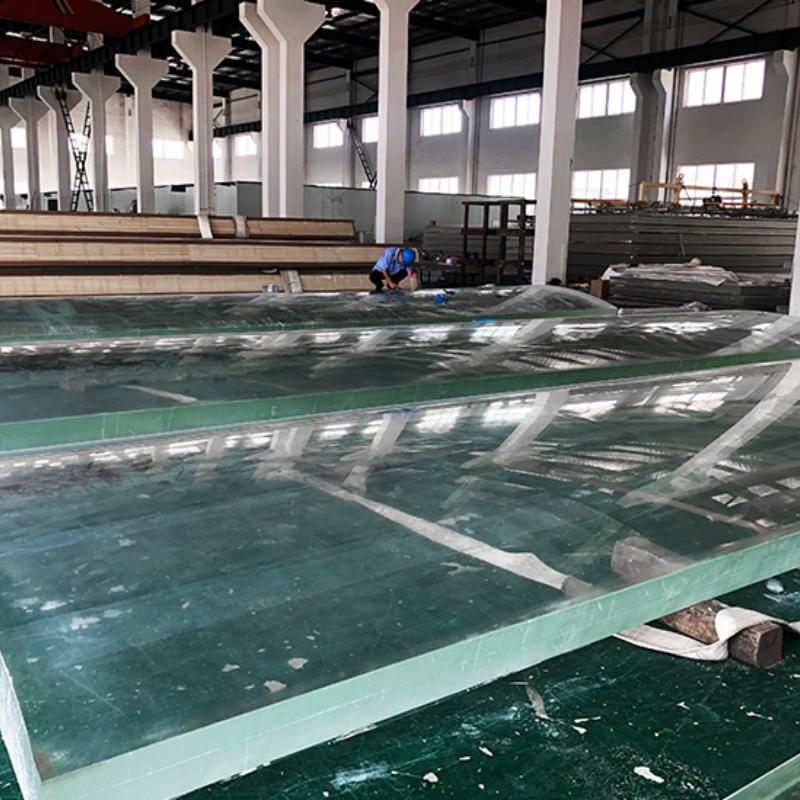

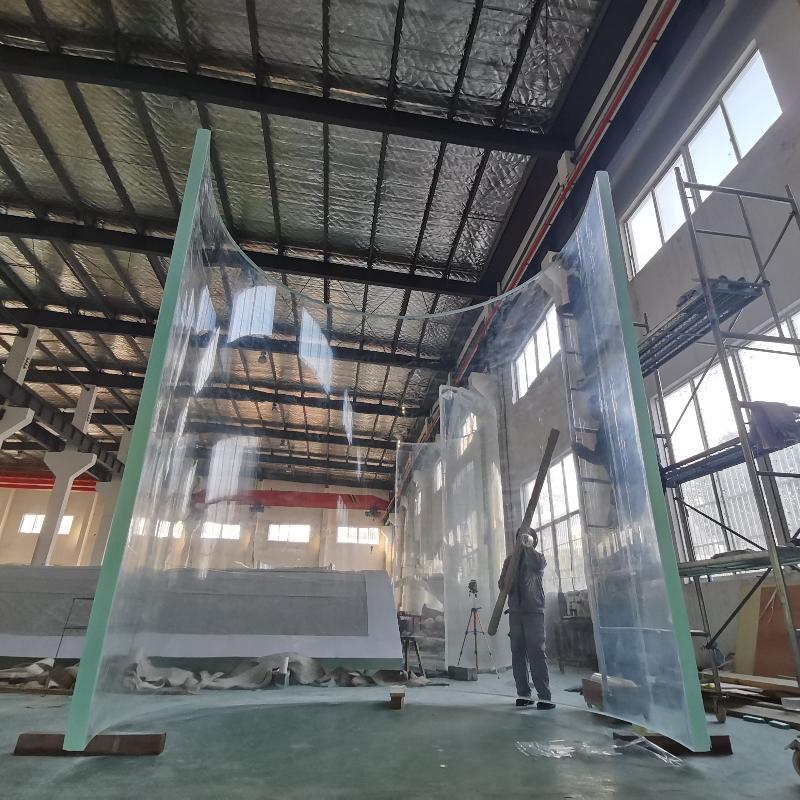

OEM Acrylic Panel Product introduction:
We supply both extruded acrylic and cast acrylic panel, raw material 100% virgin new Mitsubishi MMA, crystal surface, solid acrylic sheets, which is widely used for advertising and many other fields.
Acrylic Specifications:
| PMMA Material: | 100% virgin Lucite imported |
| Thickness: | 20mm-1000mm |
| Color: | Transparent |
| Density: | 1.2g/cm3 |
| Transparency: | 93% |

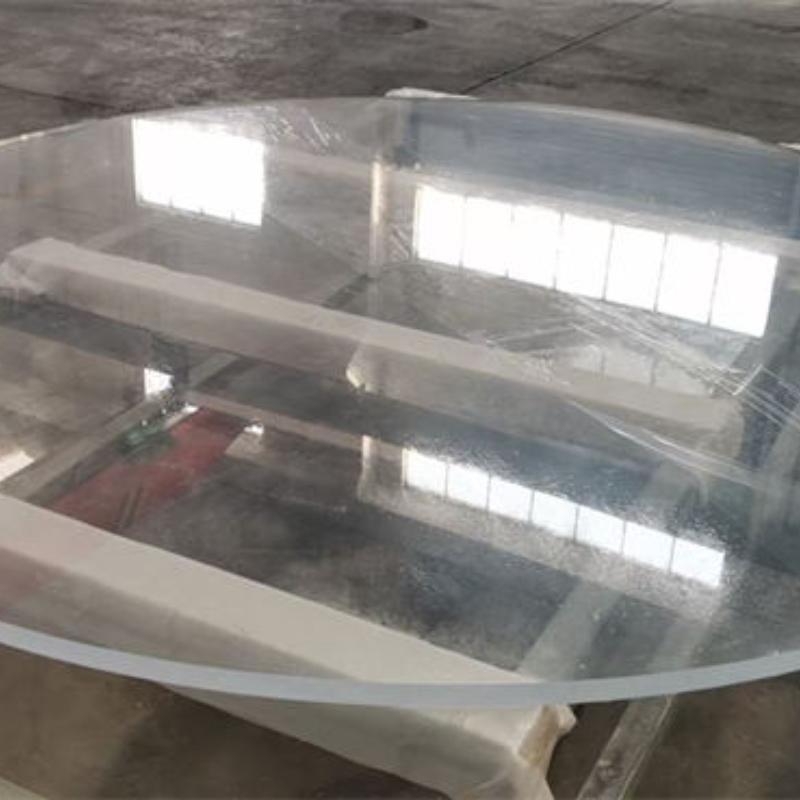

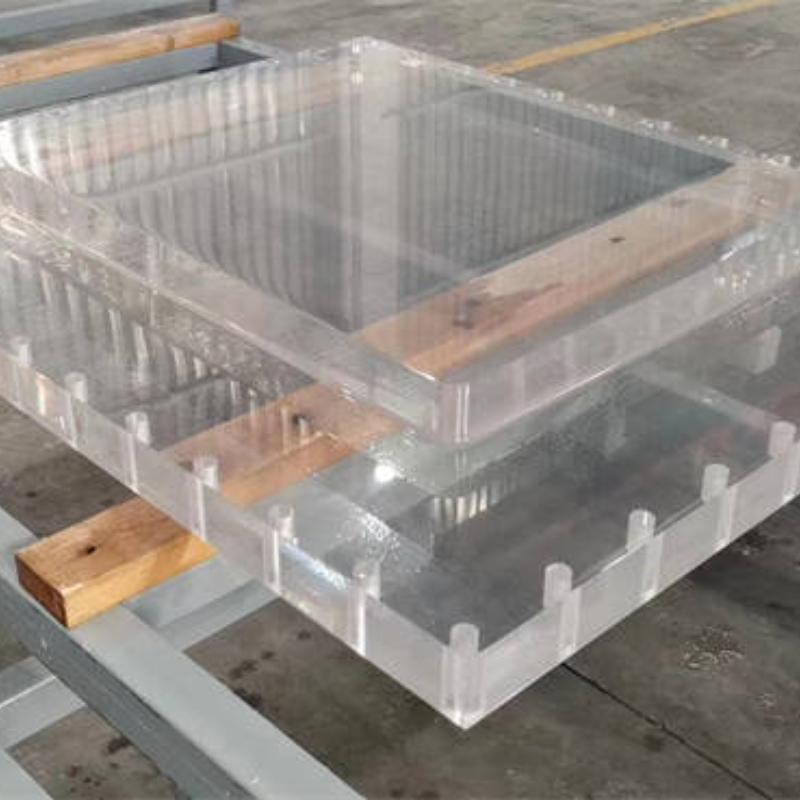

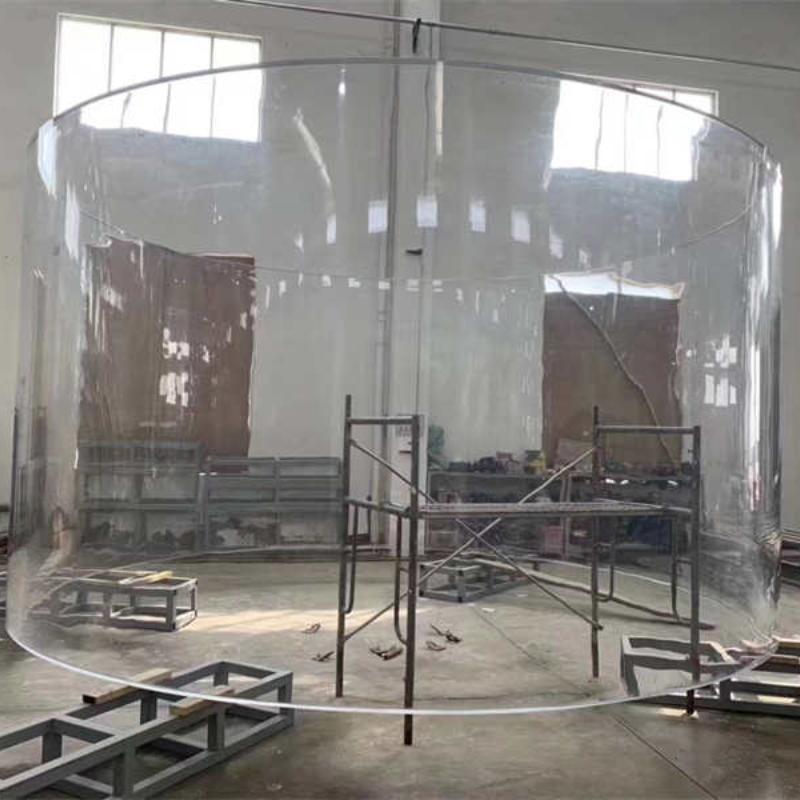

| Shape: | customized shape |
| Packing: | PE film masking on both sides, multi-layer KT board and iron structure packing |
Acrylic Parameters:
| No. | Item | Test Method | Result |
| 1 | Charpy Notched Impact Strength | GB/T 7134-2008 Section 6.5.3 & GB/T 1043.1-2008 | 19 kJ/m2 C (complete break) |
| 2 | Density | GB/T 7134-2008 Section 6.9.1 & GB/T 1033.1-2008 Method A | 1.184 g/cm3 |
| 3 | Flexural Strength | GB/T 7134-2008 Section 6.5.1 & GB/T 9341-2008 | 112MPa |
| 4 | Rockwell Hardness | GB/T 7134-2008 Section 6.5.4 & GB/T 3398.2-2008 | 114HRL |
| 5 | Tensile Modulus | GB/T 7134-2008 Section 6.5.2 & GB/T 1040.1-2018 & GB/T 1040.2-2006 | 3150 MPa |
| 6 | Tensile Strength | GB/T 7134-2008 Section 6.5.2 & GB/T 1040.1-2018 & GB/T 1040.2-2006 | 76.4 MPa |
| Elongation at Break | 5.8% | ||
| 7 | Total Luminous Transmittance | GB/T 7134-2008 Section 6.8.1 & GB/T 2410-2008 Method A | 93.2% |
| 8 | The Size Change Rate After Heating(Shrinkage) | GB/T 7134-2008 Section 6.6.3 | Length -1.6%Width -1.8% |
| 9 | Vicat Softening Temperature | GB/T 7134-2008 Section 6.6.1 & GB/T 1633-2000 Method B50 | 112 ℃ |
Advantages:
We can satisfy any requirement for customers
It is clear with high diaphaneity and translucency
It is easy to maintain clean with soap and soft cloth
Good insulation for all electrical equipment
It can bear large water pressure
Non-toxic to human
Light weight, only half weighted compared to the ordinary glass
Strong plasticity it can be easily shaped and processed
